Spinner TC52 Fanuc 2006 Model
1.604.742,20 TL + KDV
Stok Kodu
4QV4VC725F
Fiyat
34.000,00 USD + KDV
Spinner TC52 Fanuc 2006 Model
C Eksenli
| Year | 2006 |
| Model | TC 52-MC-V2 |

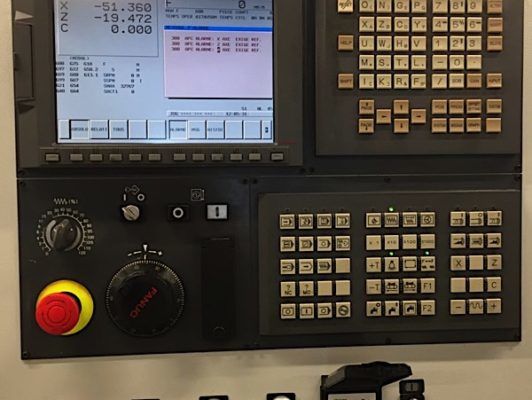

| C.N.C. | FANUC 21iTB |
| Maximum swing over bed | 400 mm |
| Maximum swing over cross-slide | 280 mm |
| Maximum length | 550 mm |
| Hole through spindle | 52 mm |
| Spindle speed | 5000 RPM |
| X axis stroke | 200 mm |
| Z axis stroke | 515 mm |
| Max. speed of rotating tools | 6000 tr/min |

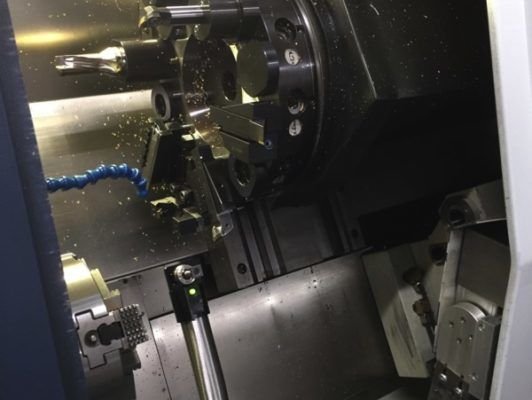

| Number of turret tooling stations | 12 |
| Rapide travel on the longitudinal movement | 24 mm/mn |
| Rapid traverse on the transversal movement | 15 mm/mn |
| Light | OUI |
| Coolant system | OUI |
| Spindle motor | 11 KW |
| Dimensions | 2100x1400x1800 mm |
| Weight | 2500 Kg |
