Cnc El Çarkı - Wifi
12.731,07 TL + KDV
Cnc El Çarkı - Wifi
|
Line number
|
Color
|
Function
|
|

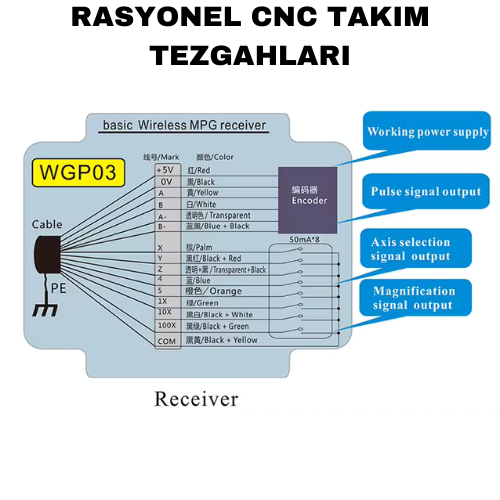

+5V
|
Red | Vddvss |
| 0V | Black | VSS |
| A | Yellow | Pulse phase A |
| B | White | Pulse phase B |
| A- | transparent white | Pulse phase A- |
| B- | Blue black | Pulse phase B- |
| X | Brown | Axis select x |
| Y | Black Red | Axis select y |
| Z | Transparent + Black | Axis select Z |
| 4 | Blue | Axis select 4 |
| 5 | Orange | Axis select 5 |
| 1X | Green | Magnification 1x |
| 10X | Black White | Magnification 10x |
| 100X | Black Green | Magnification 100x |
| COM | Black Yellow | Common signal |
